Heavy-Copper EV Battery Pack BMS & CCS FPC
Model: TLX-AUTO-BMS01
Board thickness: 0.22 mm
Copper thickness: 3 OZ (105 μm) Heavy Copper
Automotive Smart Electronics FPC
Engineered for high-density routing, dynamic flexing, and harsh-environment reliability across automotive, medical, industrial, and consumer electronics applications.

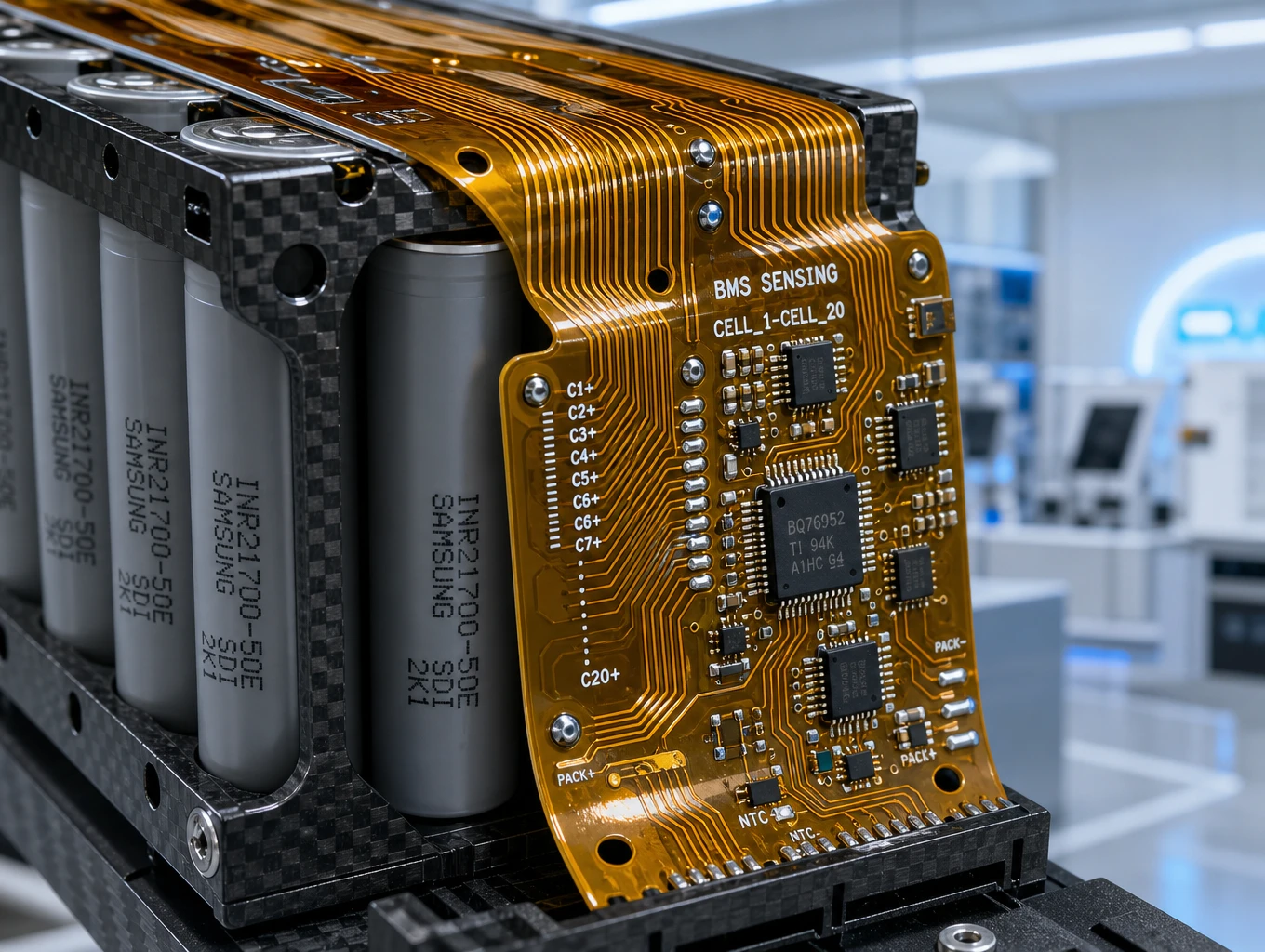

The Automotive Foundation of Reliable FPCs
Why standard flexible circuits fail in automotive environments—and how Teleconix engineers IATF-certified reliability.
As an R&D-driven automotive flexible circuit manufacturer, we deeply understand the critical role of stable signal paths and efficient power delivery in modern vehicle electronic systems. Our automotive-grade FPC and rigid-flex product lines cover single-sided, double-sided, multilayer, high-frequency, and rigid-flex configurations. They are widely used in a critical range of applications, including EV Battery Management Systems (BMS), Advanced Driver Assistance Systems (ADAS Lidar/Camera), Smart Cockpit displays and sensors, LED intelligent lighting, and In-vehicle Infotainment (IVI) systems.
From material selection to final electrical testing, every Teleconix automotive flexible circuit undergoes rigorous engineering review. We insist on using high-grade Polyimide (PI) substrates, Rolled Annealed (RA) copper foil for dynamic flexing, and offer high-current heavy copper capabilities for BMS power delivery. We are certified to IATF 16949, ensuring zero-defect quality management. Strict impedance control (TDR testing), ENEPIG surface finish, and reliable operation in extreme environments from -40°C to +125°C are our commitment to delivering zero-defect automotive signal and power paths.
Featured FPC & Rigid-Flex Configurations
Explore our most requested flexible circuit configurations. Each design is optimized for specific layer counts, copper weights, bending requirements, and environmental reliability.
High-Speed ADAS Multi-Camera SerDes FPC
Model: TLX-AUTO-ADAS02
Board thickness: 0.10 mm
Copper thickness: 1/2 OZ (18 μm) Rolled Annealed (RA) Copper
77GHz Automotive Millimeter-Wave Radar Antenna LCP FPC
Model: TLX-AUTO-RDR03
Board thickness: 0.12 mm
Copper thickness: 1/3 OZ (12 μm) Ultra-Smooth Copper Foil

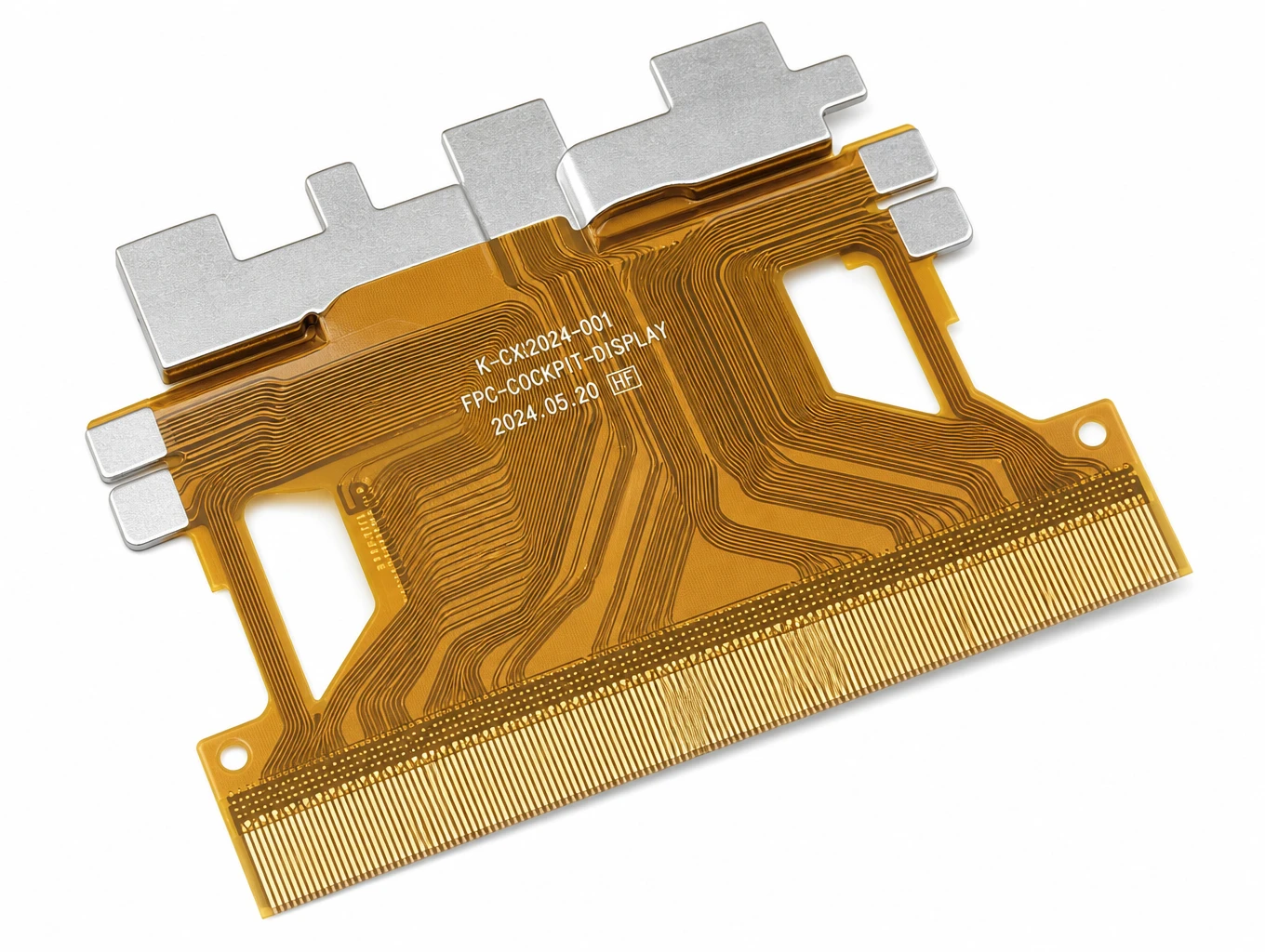

Panoramic Curved Cockpit OLED & HUD Display FPC
Model: TLX-AUTO-DSP04
Board thickness: 0.08 mm
Copper thickness: 1/3 OZ (12 μm)

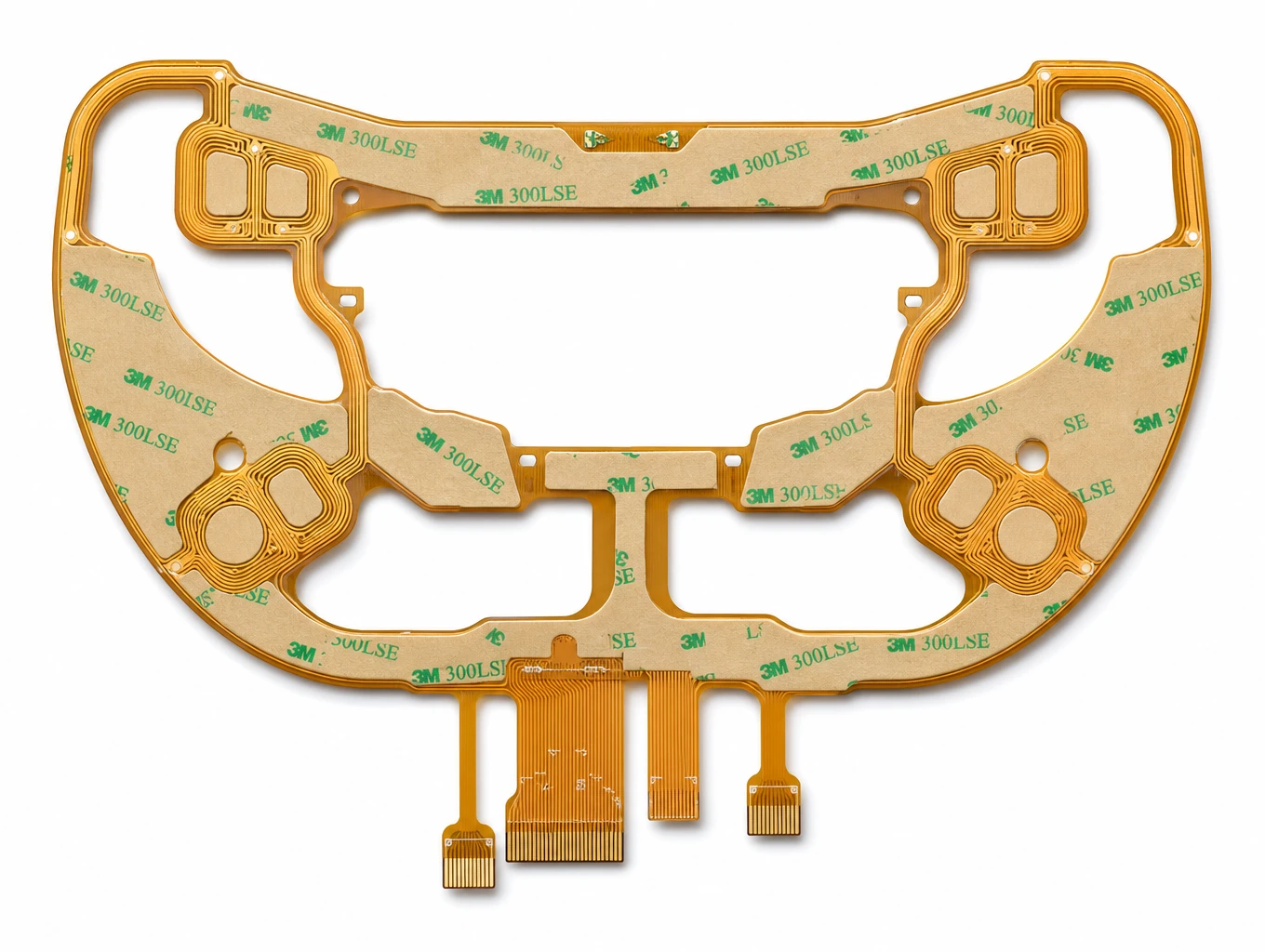

Smart Steering Wheel Capacitive Touch & HOD FPC
Model: TLX-AUTO-HOD05
Board thickness: 0.12 mm
Copper thickness: 1 OZ (35 μm) Rolled Annealed (RA) Copper

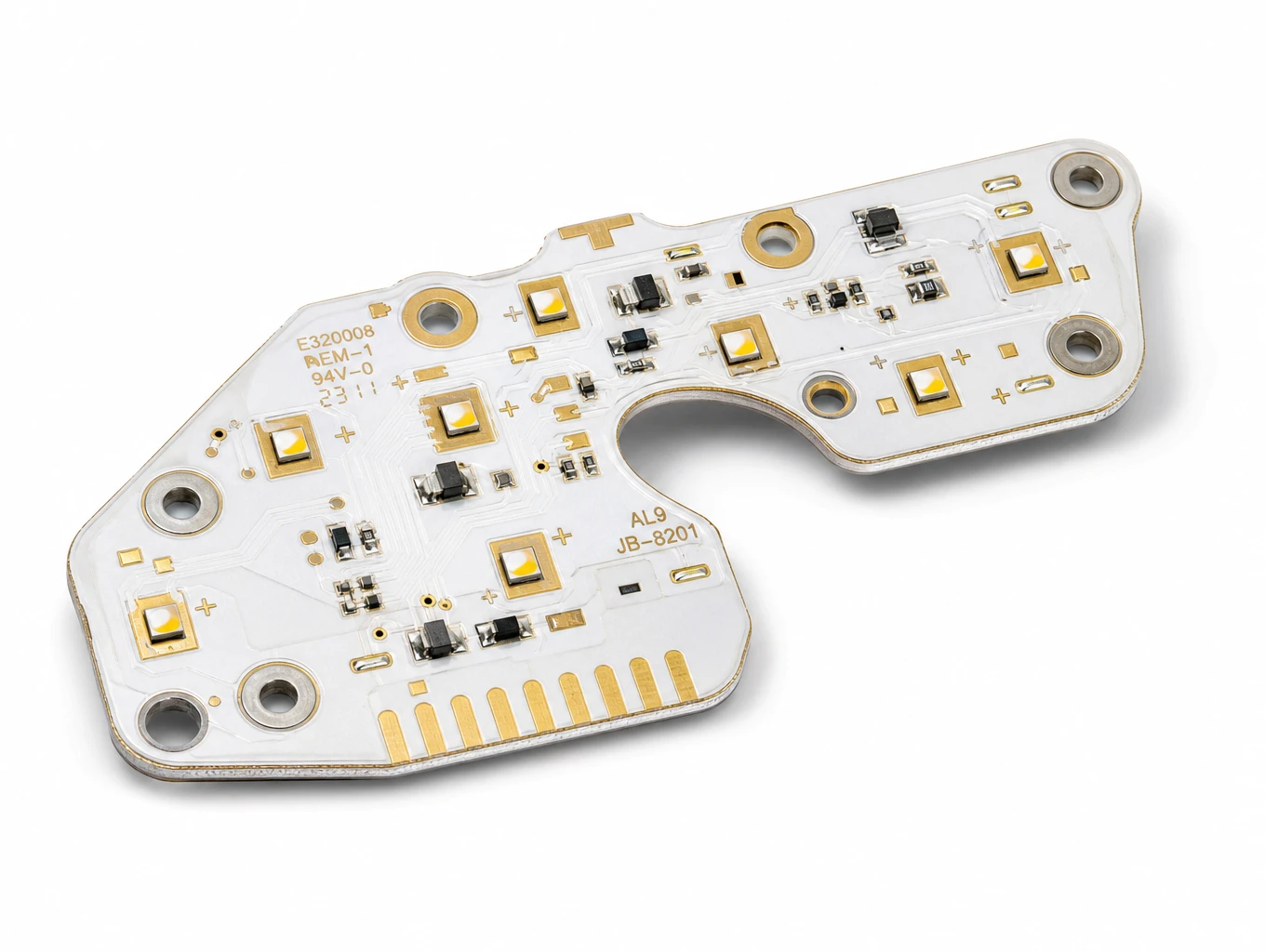

Automotive Matrix LED Headlight & Tail Light Thermal FPC
Model: TLX-AUTO-LED06
Board thickness: 0.20 mm
Copper thickness: 2 OZ (70 μm) Heavy Copper
Heavy-Copper EV Battery Pack BMS & CCS FPC
Model: TLX-AUTO-BMS01
Board thickness: 0.22 mm
Copper thickness: 3 OZ (105 μm) Heavy Copper
High-Speed ADAS Multi-Camera SerDes FPC
Model: TLX-AUTO-ADAS02
Board thickness: 0.10 mm
Copper thickness: 1/2 OZ (18 μm) Rolled Annealed (RA) Copper
77GHz Automotive Millimeter-Wave Radar Antenna LCP FPC
Model: TLX-AUTO-RDR03
Board thickness: 0.12 mm
Copper thickness: 1/3 OZ (12 μm) Ultra-Smooth Copper Foil
Panoramic Curved Cockpit OLED & HUD Display FPC
Model: TLX-AUTO-DSP04
Board thickness: 0.08 mm
Copper thickness: 1/3 OZ (12 μm)
Smart Steering Wheel Capacitive Touch & HOD FPC
Model: TLX-AUTO-HOD05
Board thickness: 0.12 mm
Copper thickness: 1 OZ (35 μm) Rolled Annealed (RA) Copper
Automotive Matrix LED Headlight & Tail Light Thermal FPC
Model: TLX-AUTO-LED06
Board thickness: 0.20 mm
Copper thickness: 2 OZ (70 μm) Heavy Copper
Built for Unmatched Automotive Reliability
Driven by IATF 16949 certified engineering, premium materials, and 100% electrical testing, every Teleconix automotive flexible circuit is optimized to eliminate open circuits, impedance mismatch, and mechanical fatigue across harsh vehicle environments.
2 Million+ Dynamic Bending Cycles
We use premium rolled annealed (RA) copper foil and adhesiveless polyimide laminates. This ensures your flexible circuits can continuously flex and twist inside EV door hinges, steering wheel clock springs, and motorized tailgate actuators without micro-cracking or signal loss.
Up to 70% Space & Weight Savings
By replacing thick, heavy traditional wire harnesses with ultra-thin multi-layer FPCs, you can significantly reduce overall vehicle weight, simplify cable management inside tight EV battery packs (BMS), and directly extend electric driving range.
Automotive-Grade Temperature & Shock Resistance
Automotive environments are extreme. Our automotive FPCs utilize specialized flame-retardant coverlays, AEC-Q200 qualified laminates, and rigid FR4/PI stiffeners that withstand continuous road vibrations and harsh thermal shocks from -40u00b0C to +125u00b0C without delamination.
Heavy-Copper & High-Speed ADAS Routing
We manufacture high-power heavy copper layouts up to 3 oz for EV BMS battery voltage/temperature sampling, alongside fine-pitch layouts down to 0.035mm line width for ADAS lidar, high-resolution cameras, and lag-free smart cockpit displays.
Application-Driven Solutions
Discover how our FPC and rigid-flex architectures solve critical spatial, thermal, and signal challenges across automotive, robotics, display, and industrial systems.
AI & Robotics & Special Industrial FPC
Take on wear, corrosion and abrasion that can damage vital equipment and components, resulting in costly downtime and production losses.
Know More
Display FPC
Whether building, maintaining or repairing oil rigs, platforms and subsea fixtures, having the right welding equipment is critical for safety and efficiency in harsh marine environments.
Know More
High-End Industrial UAV & Commercial Aerospace FPC
When welding on pipe for oil & gas, sewer and construction-related industries, you need equipment that delivers consistent quality and meets strict industry standards.
Know More
Smart Automotive Electronics FPC
Advanced lighting connection solutions for outdoor LED applications, providing weather-resistant and energy-efficient connectivity.
Know More
Accelerate Your Project: Request an Instant FPC & Rigid-Flex Quote
Partner with an IATF 16949 certified rigid flex PCB manufacturer. Submit your specs for a free engineering DFM review and detailed commercial quote within 24h.
100% Secure NDA Protection
Your intellectual property is completely safe. We strictly enforce mutual Non-Disclosure Agreements (NDA) prior to evaluating any custom Gerber files or project blueprints.
24-Hour Engineering Feedback
Our R&D matrix of over 100 specialists guarantees a formal commercial quote and initial Design for Manufacturability (DFM) assessment within 1 business day.
Flexible Prototyping to Mass Scale
Enjoy zero MOQ restrictions for your initial flexible pcb prototype service, with seamless scaling to high-volume automotive, medical, and aerospace production runs.
Turnkey FPC Assembly (FPCA)
We deliver fully functional, populated hardware. Our smart SMT center eliminates secondary sourcing headaches with verified 99.8% component placement accuracy.
