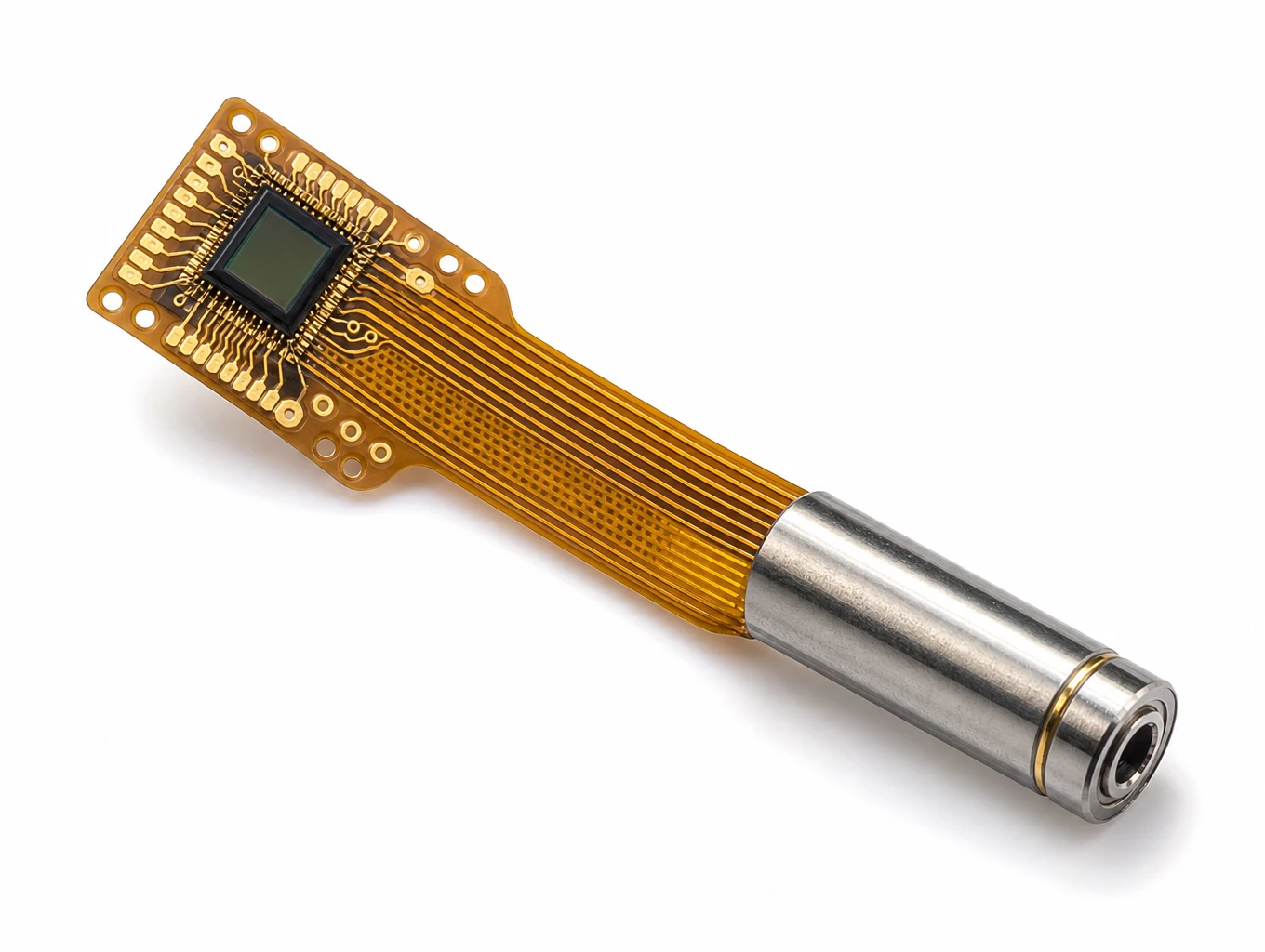

Steerable Endoscope & Laparoscope Articulating Tip FPC
Model: TLX-MED-ENDO01
Board thickness: 0.07 mm (70 μm)
Copper thickness: 1/3 OZ (12 μm) Rolled Annealed (RA) Copper
Medical device FPC
ISO 13485 certified flexible and rigid-flex circuit manufacturing engineered for diagnostic monitors, surgical instruments, ultrasound probes, and wearable medical sensors. Built with medical-grade materials to ensure uncompromised signal integrity and patient safety.

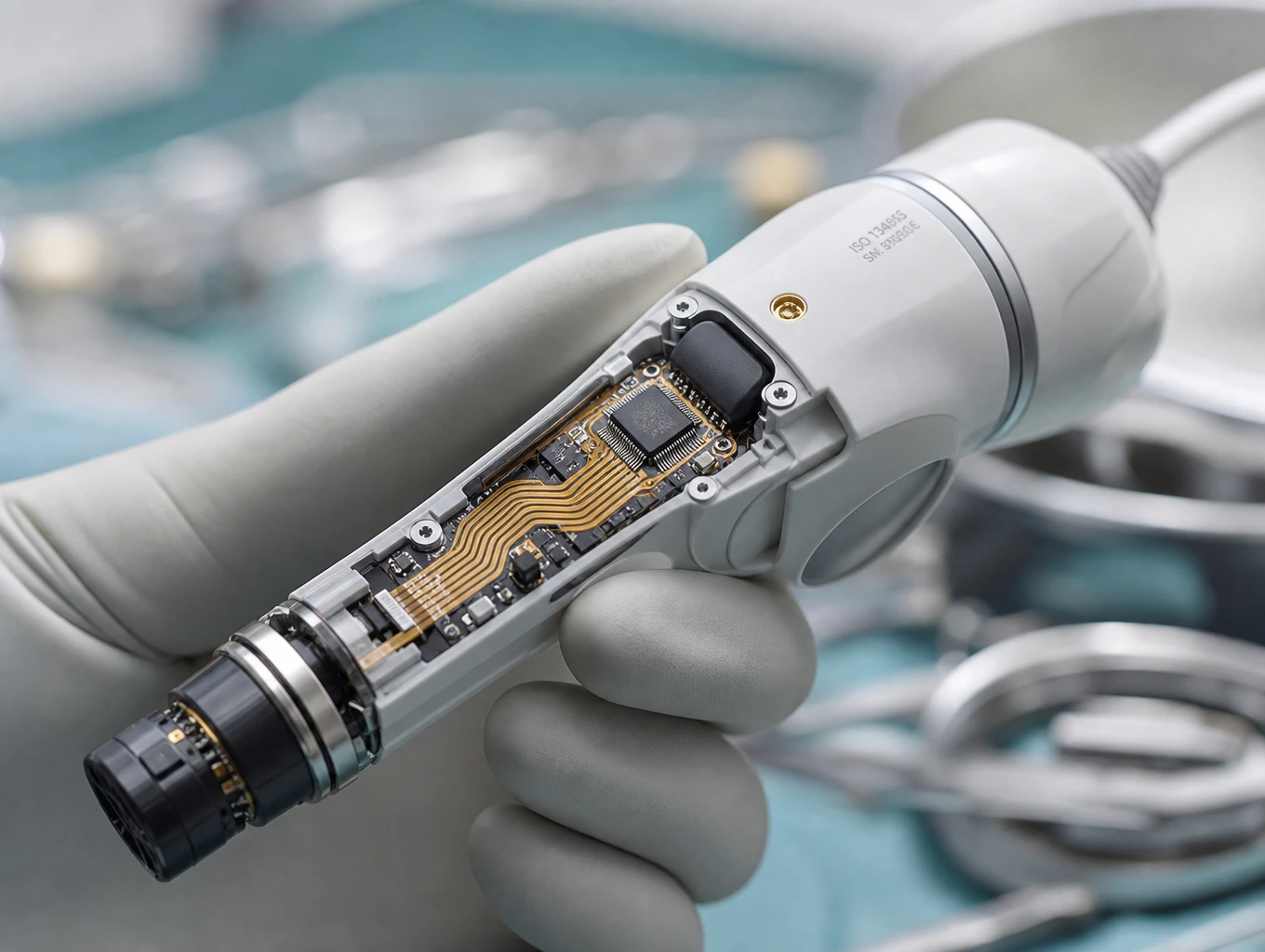

The Foundation of Reliable Medical Device FPCs
Why standard flexible circuits fail in critical healthcare applications—and how Teleconix eliminates signal loss, electrical noise, and biocompatibility risks.
As an ISO 13485 certified flexible circuit manufacturer, we deeply understand the uncompromised safety and reliability required for life-critical medical electronics. Our Medical Device FPC and rigid-flex product lines focus on ultra-precise, high-density flex configurations—specially engineered for surgical endoscopes, ultrasound transducers, patient monitoring devices, blood analyzers, and wearable healthcare sensors.
From biocompatible polyimide selection to 100% automated electrical inspection in Class 10,000 cleanrooms, every medical flex circuit undergoes rigorous quality verification. We utilize ultra-fine 0.035mm line trace routing, coplanar ENEPIG surface plating, and high-performance EMI shielding layers. Our precision manufacturing ensures absolute bio-safety, zero signal distortion, and flawless physical durability where diagnostic accuracy and patient health depend on every connection.
Featured FPC & Rigid-Flex Configurations
Explore our most requested flexible circuit configurations. Each design is optimized for specific layer counts, copper weights, bending requirements, and environmental reliability.

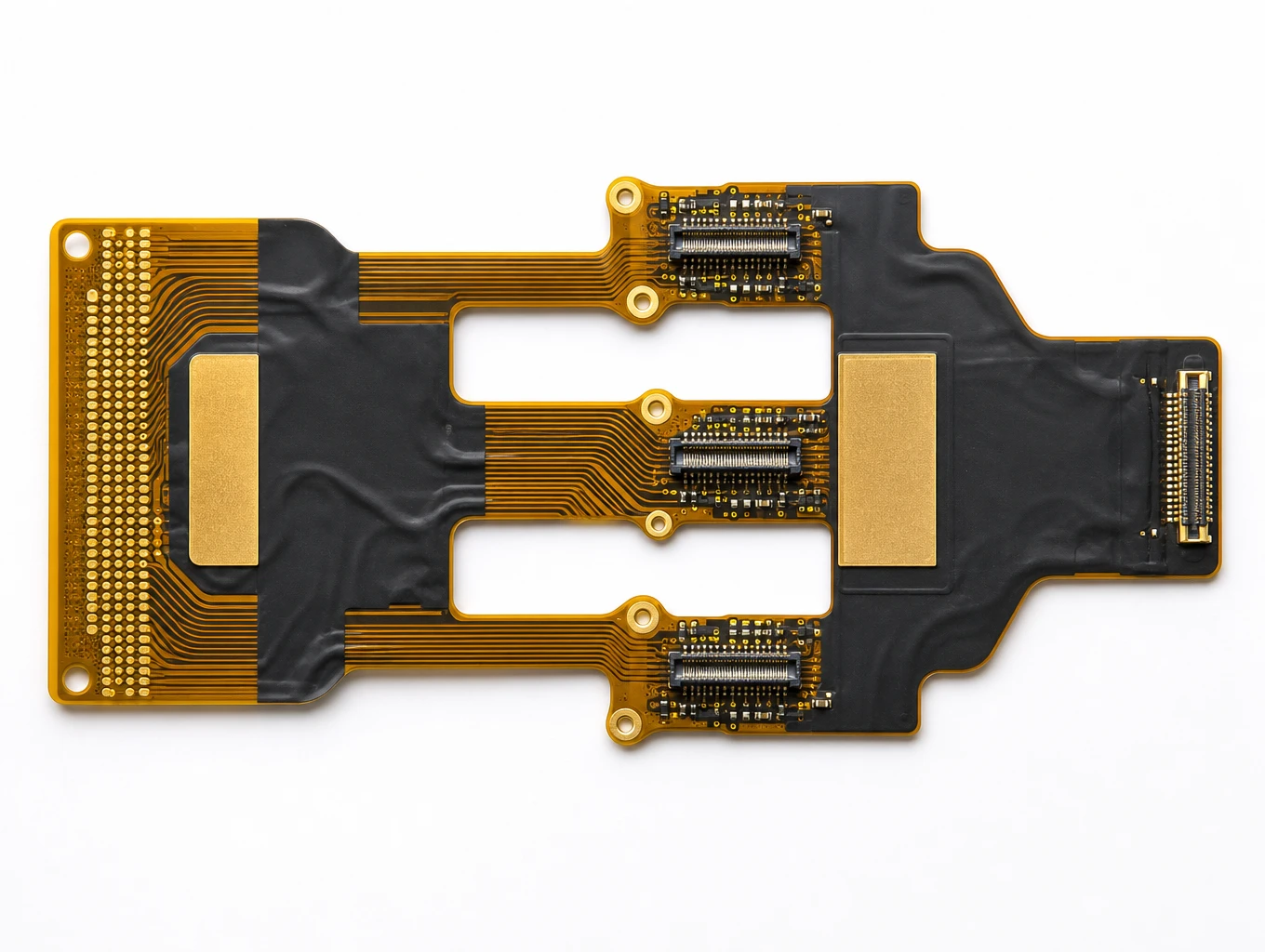

High-Frequency Ultrasound Transducer Probe Multi-Layer FPC
Model: TLX-MED-USND02
Board thickness: 0.12 mm (4-Layer High-Density Flex)
Copper thickness: 1/2 OZ (18 μm) Rolled Annealed (RA) Copper

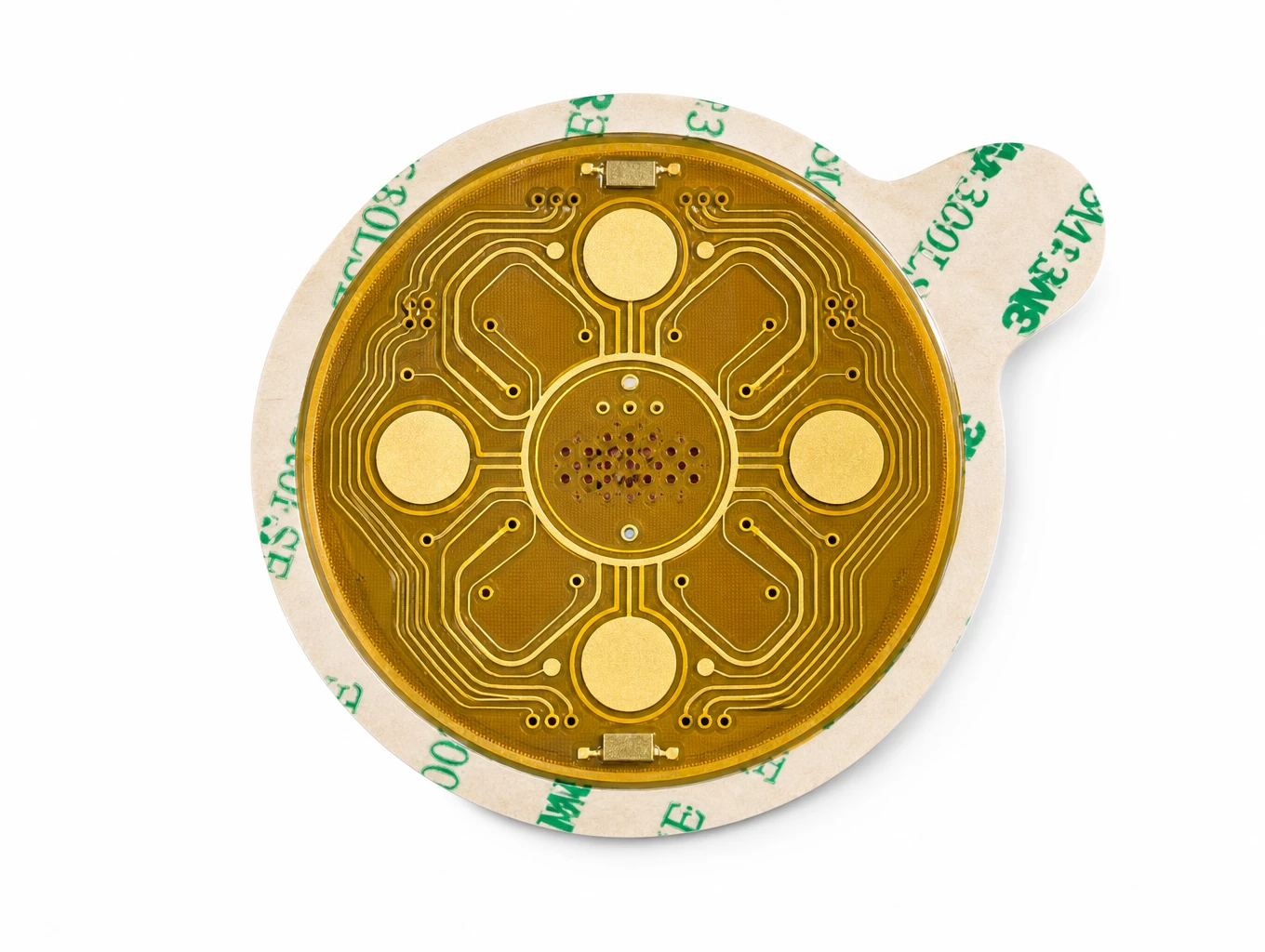

Wearable Continuous Glucose Monitor (CGM) & Biosensor Patch FPC
Model: TLX-MED-CGM03
Board thickness: 0.05 mm (50 μm)
Copper thickness: 1/3 OZ (12 μm)

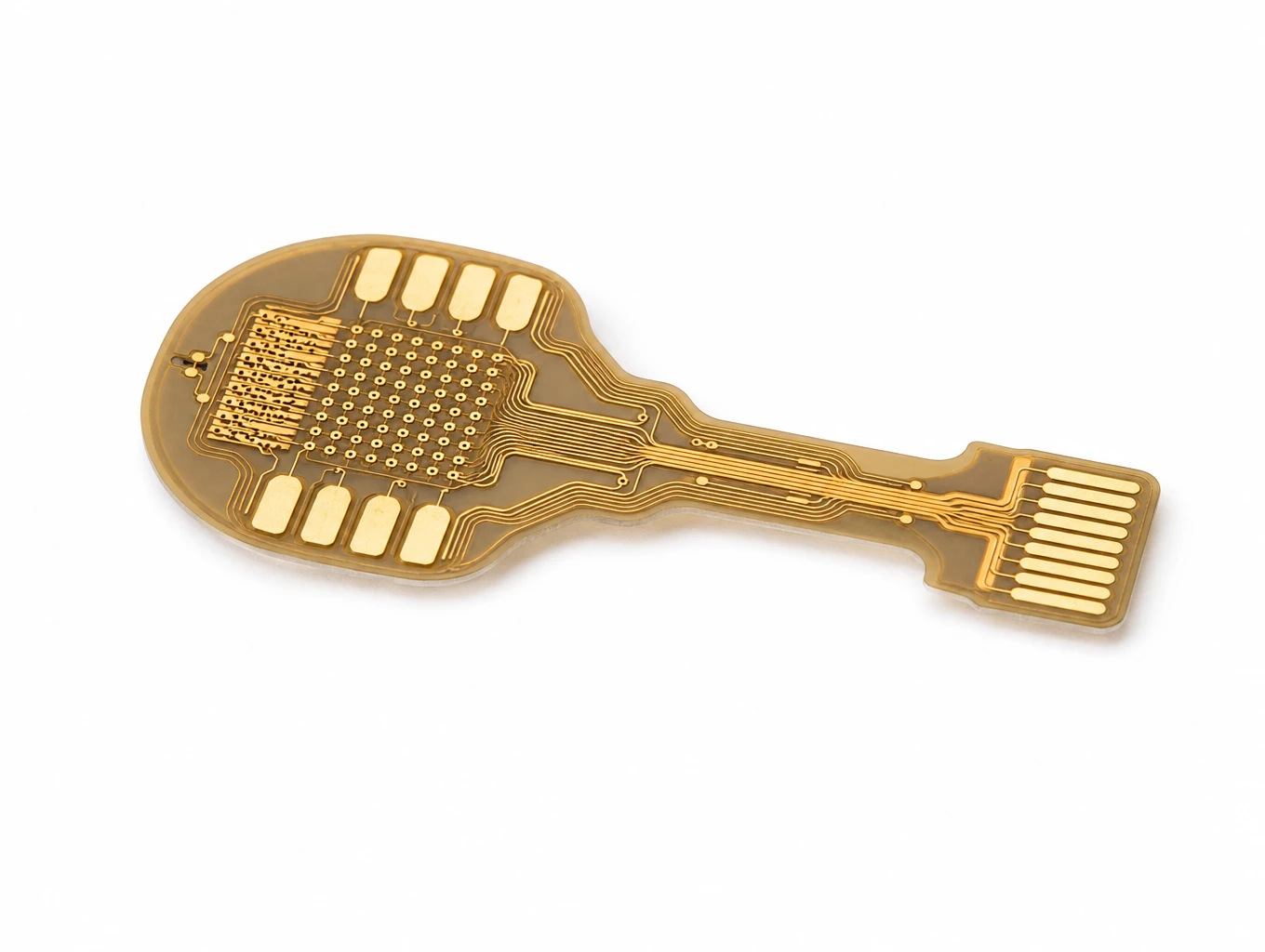

Implantable Neurostimulation & Cardiac Pacemaker Micro-Flex Circuit
Model: TLX-MED-IMPL04
Board thickness: 0.06 mm (60 μm)
Copper thickness: 1/3 OZ (12 μm) Ultra-Smooth Foil

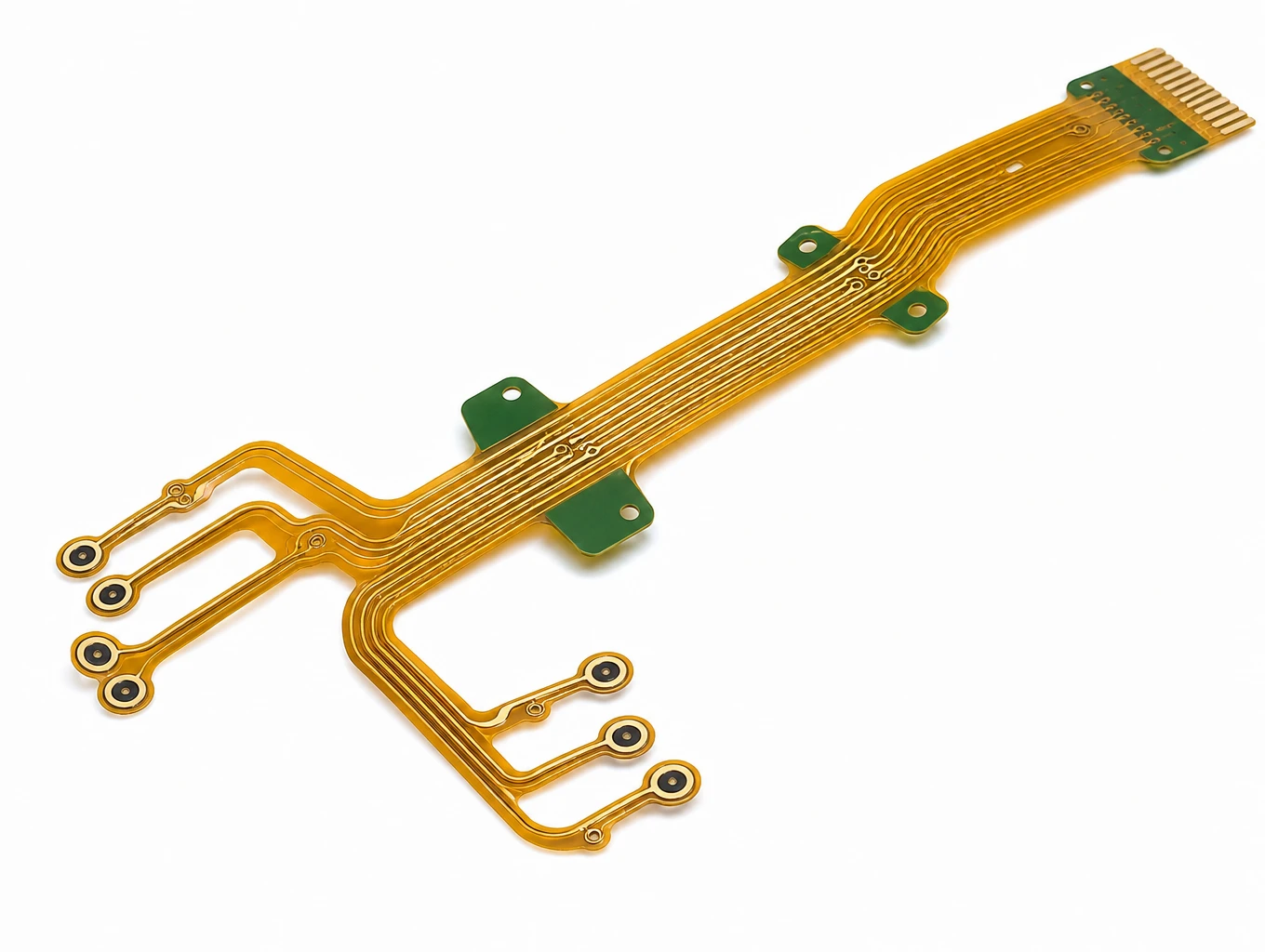

Multi-Lead ECG / EEG Diagnostic Patient Monitor Flex Ribbon
Model: TLX-MED-DIAG05
Board thickness: 0.15 mm
Copper thickness: 1 OZ (35 μm) Rolled Annealed (RA) Copper

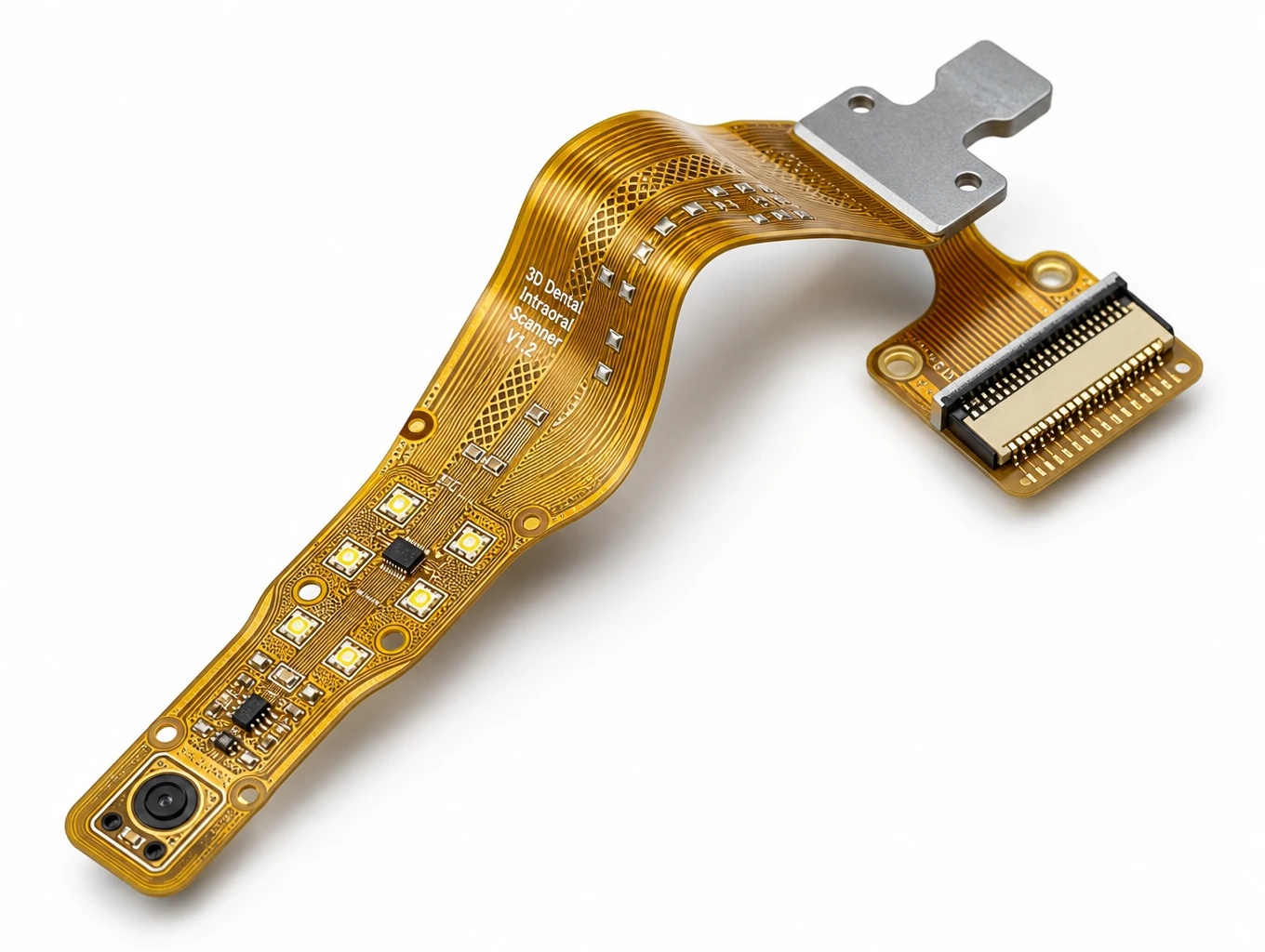

Dental Intraoral 3D Optical Scanner & Imaging Wand FPC
Model: TLX-MED-DENT06
Board thickness: 0.08 mm
Copper thickness: 1/3 OZ (12 μm) Rolled Annealed (RA) Copper
Steerable Endoscope & Laparoscope Articulating Tip FPC
Model: TLX-MED-ENDO01
Board thickness: 0.07 mm (70 μm)
Copper thickness: 1/3 OZ (12 μm) Rolled Annealed (RA) Copper
High-Frequency Ultrasound Transducer Probe Multi-Layer FPC
Model: TLX-MED-USND02
Board thickness: 0.12 mm (4-Layer High-Density Flex)
Copper thickness: 1/2 OZ (18 μm) Rolled Annealed (RA) Copper
Wearable Continuous Glucose Monitor (CGM) & Biosensor Patch FPC
Model: TLX-MED-CGM03
Board thickness: 0.05 mm (50 μm)
Copper thickness: 1/3 OZ (12 μm)
Implantable Neurostimulation & Cardiac Pacemaker Micro-Flex Circuit
Model: TLX-MED-IMPL04
Board thickness: 0.06 mm (60 μm)
Copper thickness: 1/3 OZ (12 μm) Ultra-Smooth Foil
Multi-Lead ECG / EEG Diagnostic Patient Monitor Flex Ribbon
Model: TLX-MED-DIAG05
Board thickness: 0.15 mm
Copper thickness: 1 OZ (35 μm) Rolled Annealed (RA) Copper
Dental Intraoral 3D Optical Scanner & Imaging Wand FPC
Model: TLX-MED-DENT06
Board thickness: 0.08 mm
Copper thickness: 1/3 OZ (12 μm) Rolled Annealed (RA) Copper

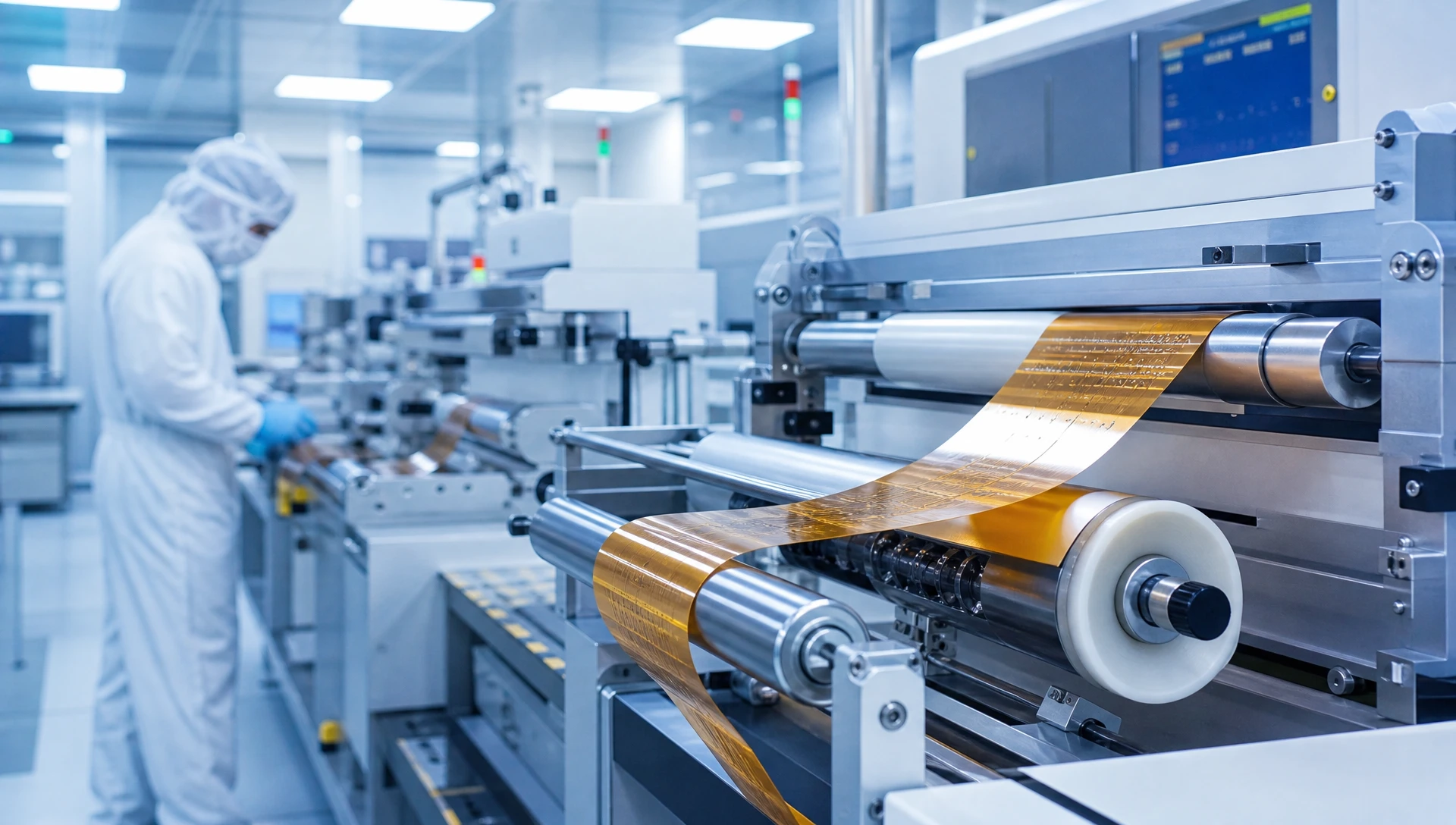

Built for Unmatched Medical Device Reliability
Driven by high-precision engineering, ISO 13485 certified processes, and 100% electrical testing, every Teleconix medical flexible circuit is optimized to eliminate signal interference, bio-hazard risks, and trace cracking in critical healthcare applications.
2 Million+ Dynamic Bending Cycles
We use premium rolled annealed (RA) copper foil combined with biocompatible adhesiveless polyimide laminates. This ensures your flexible circuits bend, twist, and articulate continuously inside surgical endoscopes, laparoscopic instruments, and wearable monitors without trace micro-cracking or signal interruption.
Up to 70% Space & Weight Savings
By replacing bulky traditional wiring harnesses and heavy connectors with ultra-thin sub-0.1mm multi-layer FPCs, medical device OEMs can dramatically reduce enclosure volumeu2014enabling lightweight handheld diagnostic tools, ultra-compact ultrasound probes, and ergonomic wearable devices.
Biocompatible & Sterilization Resistance
Medical environments require uncompromising compliance. Our medical-grade FPCs utilize specialized biocompatible coverlays and medical adhesive formulations that withstand repeated autoclave steam sterilization cycles, gamma irradiation, and harsh chemical disinfection without delaminating.
Fine-Pitch Routing & EMI Noise Protection
We manufacture ultra-precise layouts down to 0.035mm line width and spacing with flat ENEPIG surface plating. Integrated micro-thin silver or copper EMI shielding films block external electromagnetic noise, guaranteeing crystal-clear signal feeds for high-resolution ultrasound transducers and ECG monitors.
Application-Driven Solutions
Discover how our FPC and rigid-flex architectures solve critical spatial, thermal, and signal challenges across automotive, robotics, display, and industrial systems.
AI & Robotics & Special Industrial FPC
Take on wear, corrosion and abrasion that can damage vital equipment and components, resulting in costly downtime and production losses.
Know More
Display FPC
Whether building, maintaining or repairing oil rigs, platforms and subsea fixtures, having the right welding equipment is critical for safety and efficiency in harsh marine environments.
Know More
High-End Industrial UAV & Commercial Aerospace FPC
When welding on pipe for oil & gas, sewer and construction-related industries, you need equipment that delivers consistent quality and meets strict industry standards.
Know More
Smart Automotive Electronics FPC
Advanced lighting connection solutions for outdoor LED applications, providing weather-resistant and energy-efficient connectivity.
Know More
Frequently Asked Questions
Find quick answers to common technical queries regarding ISO 13485 compliance, biocompatible polyimide materials, autoclave sterilization resistance, micro-fine routing, and turnkey SMT assembly for Medical Device FPCs.
Yes. Our ISO 13485 certified Class 10,000 dust-free flexible PCB factory supports seamless volume ramp-up. We maintain dedicated Roll-to-Roll (R2R) exposure lines and automated SMT placement so the same engineering team that qualified your prototype manages your high-yield medical-grade mass production runs.
Accelerate Your Project: Request an Instant FPC & Rigid-Flex Quote
Partner with an IATF 16949 certified rigid flex PCB manufacturer. Submit your specs for a free engineering DFM review and detailed commercial quote within 24h.
100% Secure NDA Protection
Your intellectual property is completely safe. We strictly enforce mutual Non-Disclosure Agreements (NDA) prior to evaluating any custom Gerber files or project blueprints.
24-Hour Engineering Feedback
Our R&D matrix of over 100 specialists guarantees a formal commercial quote and initial Design for Manufacturability (DFM) assessment within 1 business day.
Flexible Prototyping to Mass Scale
Enjoy zero MOQ restrictions for your initial flexible pcb prototype service, with seamless scaling to high-volume automotive, medical, and aerospace production runs.
Turnkey FPC Assembly (FPCA)
We deliver fully functional, populated hardware. Our smart SMT center eliminates secondary sourcing headaches with verified 99.8% component placement accuracy.
