Micro-Form Factor Haptic Surgical Robotics Flex Circuit

Micro-Form Factor Haptic Surgical Robotics Flex Circuit

  • Board thickness: 0.07 mm
  • Material: Biocompatible Ultra-Thin Liquid Crystal Polymer (LCP)
  • Copper thickness: 1/3 OZ (12 μm)
  • Surface treatment: ENEPIG (Wire-Bondable Gold)
  • Minimum line width/line spacing: 0.025 mm / 0.025 mm (25 μm / 25 μm)
  • PI reinforcement thickness: Laser-Cut Ultra-Thin PI Stiffener (0.05 mm)
Request a Fast Quote

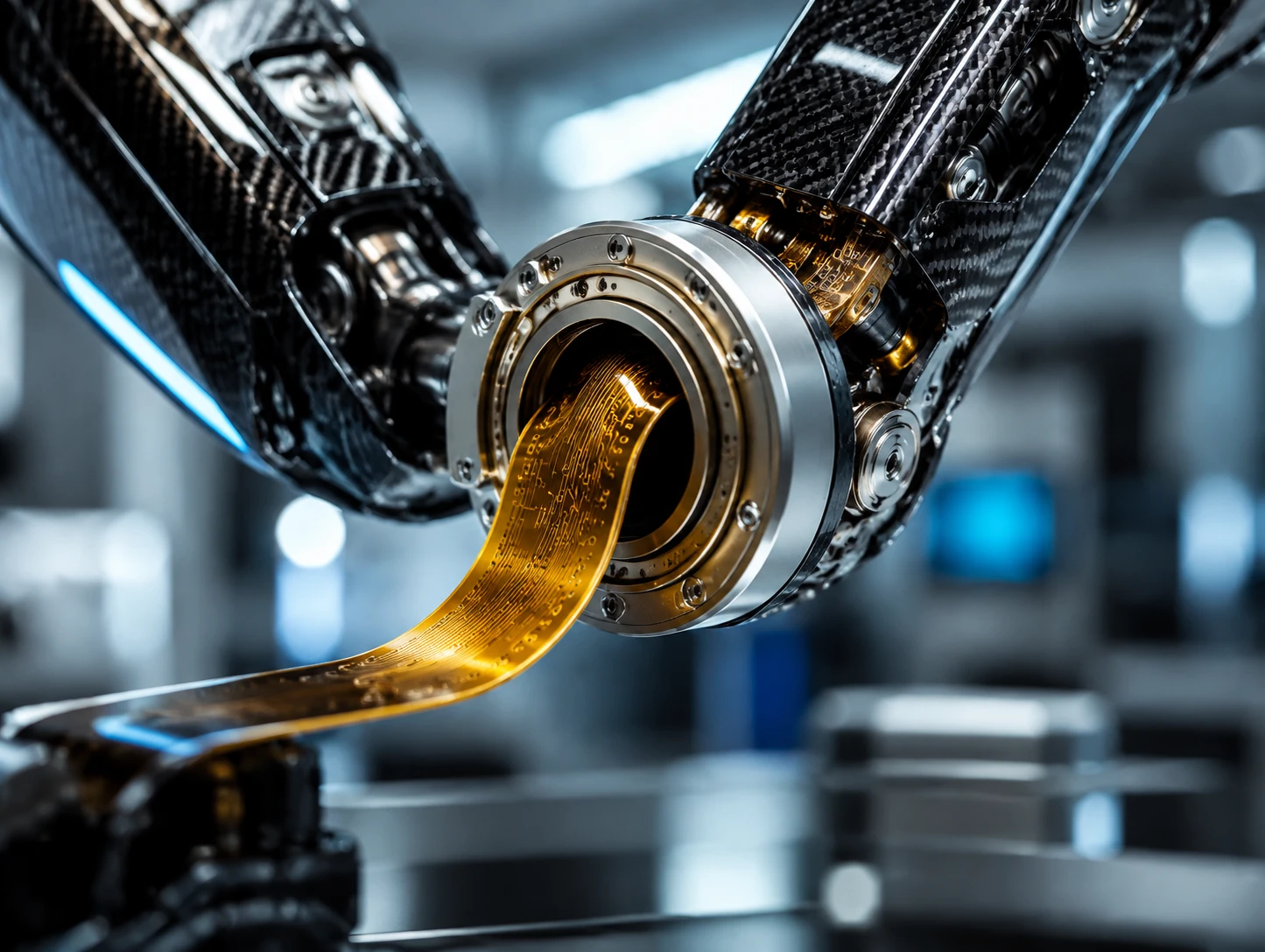

2 Million+ Dynamic Flex Cycles & Kinetic Joint Endurance

2 Million+ Dynamic Flex Cycles & Kinetic Joint Endurance

Engineered with high-ductility rolled annealed (RA) copper foil and adhesiveless polyimide (FCCL), our flex circuits are modeled with zero-stress neutral-axis stack-ups. They endure over 2 million continuous bending, twisting, and pivoting cycles inside humanoid robot limbs, robotic hands, and CNC articulating arms without trace fractures or signal degradation.

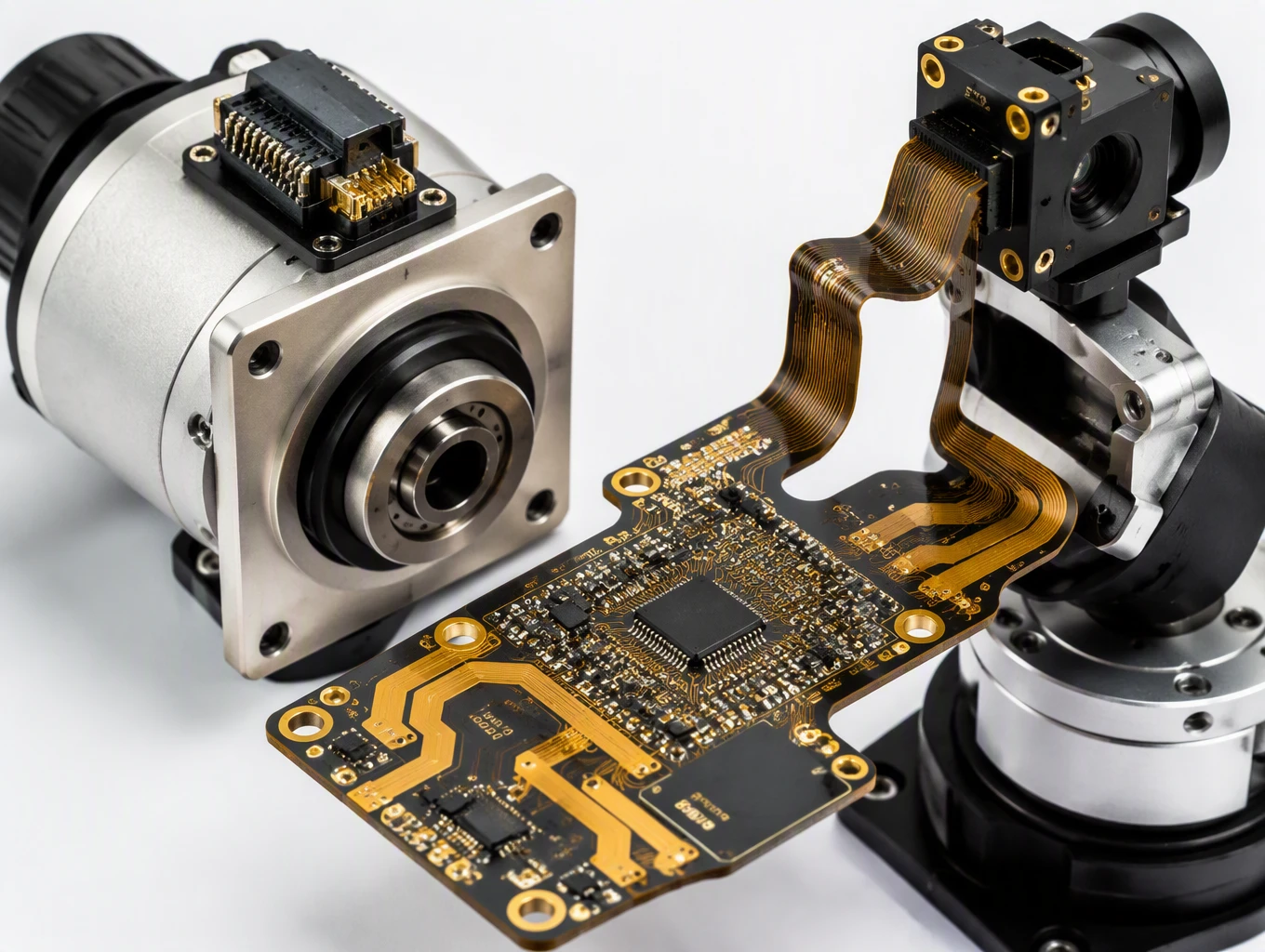

Hybrid Heavy-Copper & High-Speed AI Sensor Matrix

Hybrid Heavy-Copper & High-Speed AI Sensor Matrix

Our multi-layer rigid-flex technology integrates heavy copper power buses (up to 3 oz/4 oz) for high-torque servo motor drives alongside ultra-fine 0.035mm controlled-impedance traces (±5% tolerance) for LiDAR, tactile sensors, and AI vision controllers on a single board—saving up to 70% space and eliminating bulky wire harnesses.

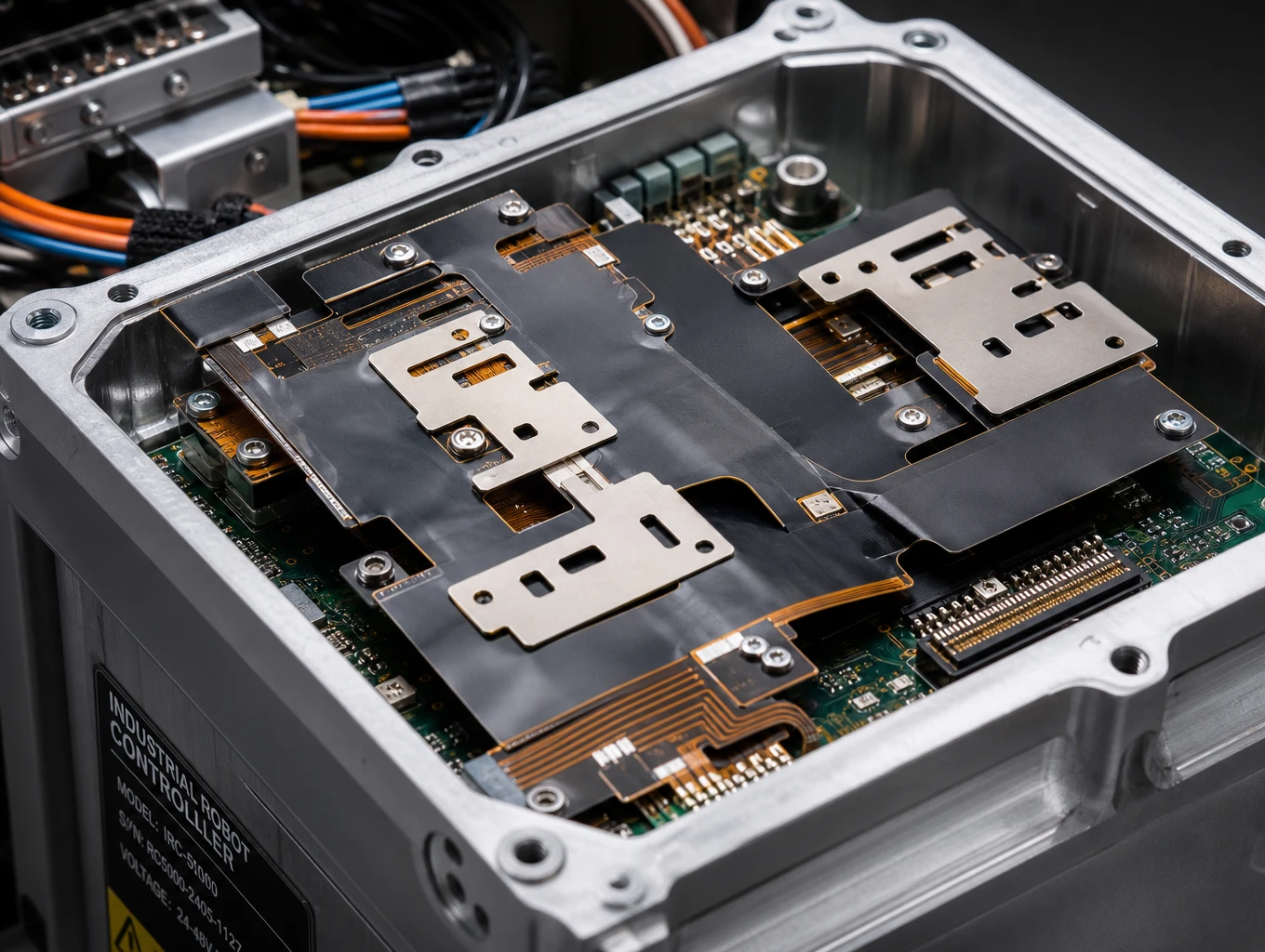

Embedded EMI Shielding & Harsh-Environment Durability

Embedded EMI Shielding & Harsh-Environment Durability

High-frequency servo motor switching creates intense electrical noise. We embed micro-thin silver conductive layers and copper grid shielding films (delivering up to 50dB EMI attenuation) paired with high-Tg polyimide and stainless steel stiffeners, ensuring zero packet loss and continuous operation under severe industrial vibrations from -40°C to +125°C.

Proven Application Solutions for Your Industry

Our custom flexible circuits are built to integrate seamlessly into complex, high-performance hardware systems. Explore our tailored application solutions below to see how we help global engineering teams solve spatial, thermal, and mechanical challenges at the system level.

Explore Related Flexible Circuit Hardware

Accelerate Your Project: Request an Instant FPC & Rigid-Flex Quote

Partner with an IATF 16949 certified rigid flex PCB manufacturer. Submit your specs for a free engineering DFM review and detailed commercial quote within 24h.

100% Secure NDA Protection

100% Secure NDA Protection

Your intellectual property is completely safe. We strictly enforce mutual Non-Disclosure Agreements (NDA) prior to evaluating any custom Gerber files or project blueprints.

24-Hour Engineering Feedback

24-Hour Engineering Feedback

Our R&D matrix of over 100 specialists guarantees a formal commercial quote and initial Design for Manufacturability (DFM) assessment within 1 business day.

Flexible Prototyping to Mass Scale

Flexible Prototyping to Mass Scale

Enjoy zero MOQ restrictions for your initial flexible pcb prototype service, with seamless scaling to high-volume automotive, medical, and aerospace production runs.

Turnkey FPC Assembly (FPCA)

Turnkey FPC Assembly (FPCA)

We deliver fully functional, populated hardware. Our smart SMT center eliminates secondary sourcing headaches with verified 99.8% component placement accuracy.
